What Is an Energy Management System (EMS)?
An Energy Management System is a framework for energy consumers combining software, hardware, and processes into a unified platform for proactive and systematic monitoring, control, and optimization of energy consumption and generation.
More precisely, an EMS is a set of tools combining software and hardware that acquires data from different energy-consuming and energy-generating equipment, analyses that data, and uses it to make or recommend decisions that reduce cost, improve efficiency, and maintain reliability.
In battery applications specifically, the EMS operates above the battery hardware layer; it does not manage individual cells. It manages how battery systems, renewable generation assets, grid connections, and loads interact with each other to achieve economic and operational objectives. Think of it as a set of processes, equipment, and technology that transforms raw energy data into intelligent dispatch decisions.
In grid and building contexts, an EMS functions as a computer system for the automated control and monitoring of systems in a building or facility coordinating HVAC, lighting, generation, and storage simultaneously. In battery-centric applications, the EMS is the strategic intelligence layer sitting above the BMS.
Understanding the Relationship Between EMS and Battery Management Systems (BMS)
The BMS and EMS are complementary systems operating at different levels of the energy stack. Confusing their roles or trying to make one do the other’s job is one of the most common architectural mistakes in battery system design.
The Core Division of Labor
The BMS (Local Sensing and Protection): The BMS operates at the cell and pack level. Its domain is microseconds to seconds real-time voltage measurement, thermal monitoring, protection switching, cell balancing, and SOC/SOH estimation. It answers the question: is this battery safe and what is its current state? The BMS does not make economic decisions. It enforces physical safety and reports accurate state data.
The EMS (Global Dispatch and Optimisation): The EMS operates at the system and portfolio level. Its domain is minutes to days scheduling charge and discharge cycles, optimising against tariff structures, coordinating multiple battery packs and generation assets, and executing market participation strategies. It answers the question: how should energy flow across this system to achieve the best outcome? The EMS does not manage individual cells. It issues dispatch commands that the BMS executes within its safety envelope.

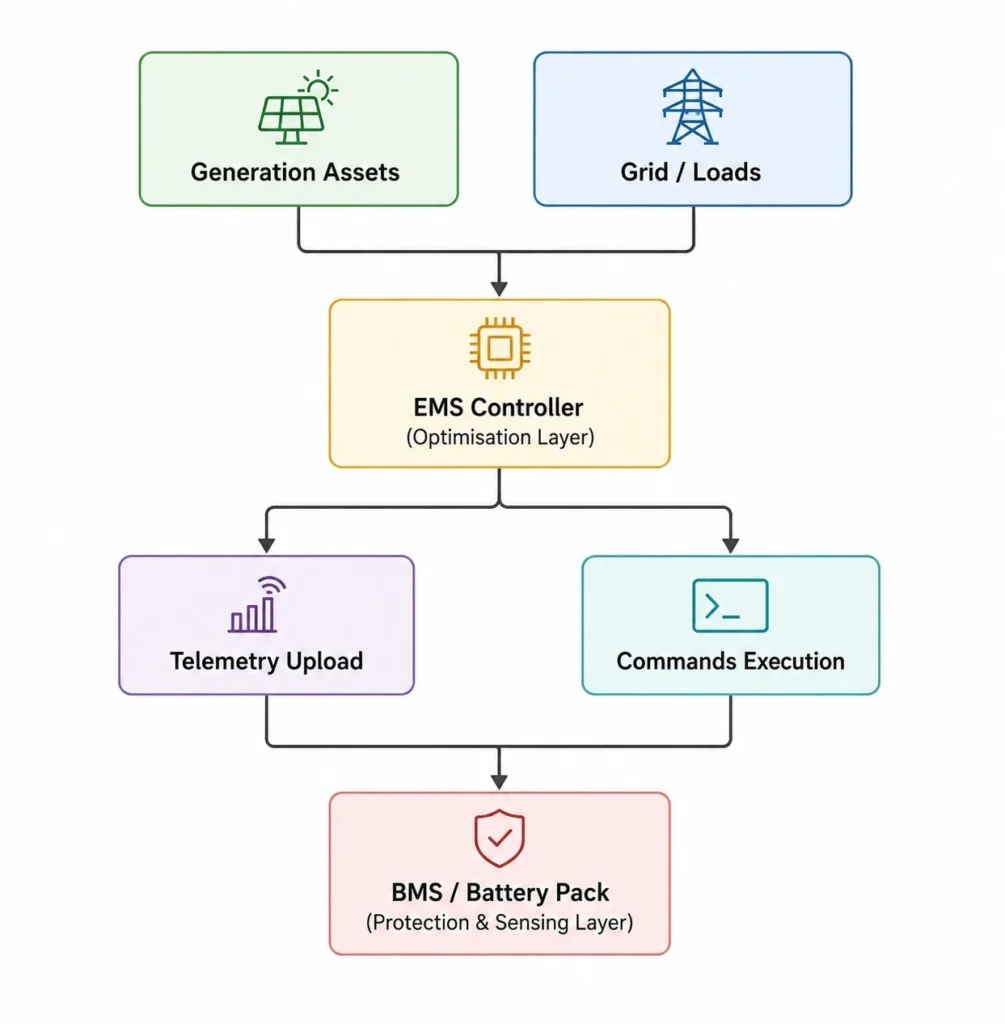

How EMS and BMS Interact and Communicate
Telemetry Upload: The BMS continuously streams cell-level data upward to the EMS pack voltage, current, SoC, SoH, temperature, fault status, and available charge/discharge power (SoP). This is the real-time information the EMS uses as inputs to its optimisation and dispatch decisions.
Strategic Decisions: The EMS processes incoming telemetry alongside external data grid tariff signals, weather forecasts, load predictions, market pricing and runs optimisation algorithms to determine the optimal charge/discharge schedule for the current operating window.
Command Execution: The EMS sends dispatch commands to the BMS charge at X kW, discharge at Y kW, idle, precondition to temperature Z. The BMS executes these commands only within its safety envelope. If an EMS command would violate a protection threshold, the BMS overrides it. Safety is always the BMS’s absolute authority; the EMS cannot override physical protection limits.
How Does an Energy Management System Work in Battery-Powered Applications?
Real-Time Monitoring and Data Collection
The EMS acquires data from different energy-consuming equipment and generation assets continuously battery pack telemetry from the BMS, solar generation output from inverter SCADA, load consumption from smart meters, grid frequency and voltage from grid measurement points, and tariff signals from utility systems. This data flows into the EMS at millisecond to second intervals and is processed, validated, and stored for both real-time decision-making and historical analytics.
State Estimation: Beyond receiving BMS-calculated SOC and SOH, the EMS maintains its own higher-level system state model of total available energy across all battery assets, total generation capacity, projected load demand, and grid availability. This system-level state estimation is the foundation of every dispatch decision the EMS makes.
Intelligent Control: With a complete picture of system state, external signals, and historical patterns, the EMS runs control algorithms rule-based logic for simple applications, mixed-integer linear programming for economic dispatch, and machine learning forecasting for demand and generation prediction in complex applications. Control outputs are dispatch commands issued to the BMS and other controllable assets in the system.
Core Components of an Energy Management System
EMS Controller (Hardware)
The EMS controller is the physical computing platform that runs optimization algorithms and dispatch logic typically an industrial-grade edge computing device or server with real-time operating system capability, high-availability architecture, and the communication interfaces needed to connect to all assets in the system. For large installations, the EMS controller may be a distributed computing cluster rather than a single device.
Communication Layer
The communication layer is the data fabric that connects the EMS to every device it manages. Common protocols include Modbus TCP/RTU for battery inverters and meters, CANopen for battery systems, DNP3 for grid-connected applications, IEC 61850 for utility-grade substations, and MQTT or REST APIs for cloud connectivity. Protocol translation gateways handle the reality that most real-world installations involve multiple communication standards that must be bridged.
Data Acquisition and Cloud Module
The data acquisition layer collects, timestamps, validates, and stores all incoming telemetry from connected assets. Cloud connectivity extends this capability streaming data to cloud platforms for long-term storage, advanced analytics, and remote access. Cloud modules also enable OTA configuration updates, remote diagnostics, and cross-site portfolio optimization for operators managing multiple BESS installations.
Optimisation Software
The optimisation software layer is what differentiates a basic monitoring system from a true EMS. It translates system state data and external signals into economic and operational dispatch decisions, charge scheduling to minimize energy cost, peak shaving logic to reduce demand charges, renewable firming algorithms to smooth generation variability, and market participation logic for frequency regulation or capacity markets. The sophistication of this layer determines the economic value the EMS delivers.
Key Functions of an EMS in Battery Management
Charge and Discharge Scheduling
The EMS schedules when battery assets charge and discharge based on tariff structures, load forecasts, generation predictions, and battery health constraints. In time-of-use tariff environments where electricity costs vary significantly by time of day, intelligent charge scheduling is the single highest-value EMS function, consistently delivering 20-40% reductions in energy cost for commercial and industrial users.
Economic Dispatch and Monetisation
Beyond cost reduction, the EMS enables active revenue generation from battery assets. Energy arbitrage charging when electricity is cheap, discharging when it’s expensive is the foundational economic model. In markets with real-time pricing or day-ahead energy markets, the EMS continuously evaluates dispatch decisions against market prices to maximise asset revenue.
System Co-ordination and Control
In systems with multiple battery packs, multiple inverters, solar generation, wind generation, and grid connection simultaneously, the EMS co-ordinates all assets toward a unified operational objective. Without EMS co-ordination, assets can work against each other: a solar inverter maximising generation while a battery simultaneously charges from the grid, for example. The EMS prevents this by maintaining a system-level dispatch optimisation that governs all controllable assets together.
Renewable Energy Integration
The EMS manages the interface between variable renewable generation and battery storage using batteries to firm renewable output, smooth generation variability, and store excess generation for later use. For solar plus storage installations, the EMS decides in real time whether incoming solar energy should be consumed immediately, stored in the battery, or exported to the grid based on tariff signals, battery SoC, and load demand simultaneously.
AI Forecasting and Data Analytics
Modern EMS platforms integrate AI-based forecasting for load demand, solar generation, and grid pricing. These forecasts enable the EMS to schedule battery dispatch proactively pre-charging before an anticipated demand spike, or pre-discharging before an anticipated cheap-energy window rather than reacting to conditions after they occur. Historical data analytics identify degradation trends, usage patterns, and optimisation opportunities that rule-based systems would miss.
Safety, Fleet Monitoring, and Reporting
The EMS provides a unified monitoring dashboard across all battery assets real-time SoC, SoH, temperature, fault status, and operational state for every pack in the system. Fleet-level battery health monitoring enables early identification of degrading assets before they fail in service. Automated reporting generates the operational, financial, and regulatory documentation that commercial BESS operators are required to produce.
Applications of Energy Management Systems
Electric Vehicles (EVs)
In EV fleet applications, the EMS manages charge scheduling across a depot’s full charging infrastructure staggering charge sessions to prevent grid demand spikes, prioritising vehicles with the earliest departure times, and optimising charge timing against time-of-use tariffs to minimise energy cost. As V2G capability expands, the EMS will also manage vehicle-to-grid discharge sessions, turning parked EV fleets into dispatchable grid assets. This is especially relevant for passenger and commercial electric vehicles, where fleet scale, charging schedules, and battery availability increasingly need to be coordinated as part of the wider energy system.
Battery Energy Storage Systems (BESS)
Grid-scale and commercial BESS is the primary application domain for advanced EMS technology. The EMS manages charge/discharge scheduling for economic optimisation, co-ordinates multiple battery racks and inverter strings, interfaces with grid management systems for frequency regulation and capacity market participation, and tracks battery health across the asset’s 20-year operating life.
Commercial and Industrial Facilities
For commercial and industrial applications, the EMS manages on-site generation (solar, combined heat and power), battery storage, and grid import/export simultaneously reducing peak demand charges, minimising energy import costs, and maintaining power quality and reliability. In India’s commercial tariff environment, where demand charges can constitute 30–40% of an electricity bill, EMS-driven peak shaving delivers material and immediate financial returns.
Manufacturing Plants
Manufacturing facilities have highly variable and often predictable load profiles; process startup, peak production, and shutdown periods create demand patterns the EMS can optimize against. Battery storage managed by an EMS smooths production-driven demand spikes, reduces maximum demand tariff exposure, and provides ride-through capability for brief grid interruptions that would otherwise cause costly production stoppages.
Solar and Renewable Energy Plants
Utility-scale solar plants use EMS to manage the interface between generation and grid injection, storing excess generation during peak solar hours for discharge during evening peak demand periods, meeting grid ramp rate requirements, and optimising against power purchase agreement (PPA) terms. The EMS is the system that transforms an intermittent solar asset into a firm, dispatchable generation source.
Microgrids
Microgrids isolated or grid-connected energy systems serving a defined geographic area require EMS capability to balance generation, storage, and load in real time, manage islanding transitions (switching between grid-connected and island operation), and optimise across multiple distributed energy resources simultaneously. The EMS is the central intelligence that makes a microgrid operationally viable rather than simply a collection of connected assets.
Data Centers
Data centers require uninterruptible, high-quality power for critical computing infrastructure. The EMS manages UPS battery systems, backup generation, and grid supply simultaneously ensuring seamless failover, optimising battery charge state for availability, and managing energy costs in facilities where electricity is typically the largest operating expense. As data centers adopt lithium-ion battery UPS systems, EMS integration becomes critical for battery health management at scale.
Benefits of Integrating EMS with Battery Management Systems
1. Optimal Battery Longevity and Health
Preventing Degradation: The EMS extends battery life by operating assets within health-optimal dispatch profiles avoiding repeated deep discharge, limiting high-rate charging events that stress cells, and maintaining SoC within the chemistry’s longevity-optimal window. Where the BMS enforces hard protection limits, the EMS operates within a softer envelope optimised for long-term health rather than just immediate protection.
Adaptive Dispatching: As batteries age and SoH declines, the EMS adapts dispatch strategies to match the battery’s evolving capability reducing peak discharge rates, adjusting depth of discharge, and rebalancing the load across multiple packs in a fleet to equalise aging. This adaptive approach extends the economic life of battery assets well beyond what fixed dispatch strategies achieve.
2. Maximized Economic Returns and Cost Savings
Energy Arbitrage: The EMS identifies and executes energy arbitrage opportunities charging from the grid or renewable generation when energy is cheap, discharging to serve load or export when energy is expensive. In markets with meaningful time-of-use price spreads, arbitrage is the primary revenue mechanism for commercial BESS.
Peak Shaving: By discharging battery storage during peak demand periods, the EMS reduces the facility’s maximum demand measurement, cutting demand charges that are calculated on peak monthly consumption. For large industrial and commercial users in India, peak shaving alone can deliver annual savings in the tens of lakhs.
Market Participation: In electricity markets with ancillary service mechanisms frequency regulation, spinning reserve, capacity markets the EMS manages battery dispatch to participate in these markets and generate additional revenue streams beyond simple arbitrage. This market participation capability transforms a BESS from a cost management tool into an active revenue-generating asset.
3. Enhanced Safety and Predictive Maintenance
Thermal Runaway Prevention: The EMS contributes to thermal safety by monitoring temperature trends across battery assets at the system level identifying thermal anomalies that may not trigger BMS protection thresholds but indicate developing problems. Where the BMS responds to immediate thermal events, the EMS identifies the patterns that precede them.
Proactive Servicing: EMS analytics identify batteries trending toward end-of-life or showing anomalous degradation rates before they fail in service. Predictive maintenance scheduling triggered by EMS analytics rather than fixed time intervals reduces both unplanned downtime and unnecessary preventive maintenance costs.
4. Seamless Renewable Integration and Grid Stability
Renewable Firming: The EMS co-ordinates battery discharge to compensate for renewable generation variability smoothing the output of solar and wind assets to meet grid ramp rate requirements and PPA delivery commitments. Without EMS-managed firming, variable renewable generation creates grid stability challenges that limit deployment scale.
Grid Services: EMS-managed BESS can provide frequency regulation services rapidly injecting or absorbing power to maintain grid frequency within acceptable bounds. These services are technically demanding (response times of seconds) and economically valuable, requiring the tight BMS-EMS integration that allows the EMS to issue fast dispatch commands the BMS can execute within its safety envelope.
Common Challenges in Battery Energy Management and Storage
Data and Communication Bottlenecks
High Latency: EMS optimisation algorithms depend on real-time data from all connected assets. Communication latency delays between a battery event and the EMS receiving data about it degrades optimisation accuracy and, in safety-critical applications, response speed. Industrial communication networks must be designed for deterministic low-latency performance, not general-purpose IT network standards.
Protocol Incompatibility: Real-world BESS installations typically involve equipment from multiple vendors using different communication protocols Modbus, CAN, IEC 61850, MQTT, proprietary formats. Protocol translation adds latency, complexity, and potential failure points. EMS platforms that support native multi-protocol communication without external gateways deliver better reliability and lower integration cost.
Data Deluge: A large BESS installation with thousands of cells generating telemetry at sub-second intervals produces enormous data volumes. Processing, storing, and acting on this data in real time requires purpose-designed data infrastructure not general-purpose databases or SCADA systems designed for slower industrial processes.
Accuracy in State Estimation
Nonlinear Degradation: Battery aging is not linear. Degradation accelerates at certain SoH thresholds, varies by operating temperature history, and differs across cell chemistries in ways that fixed electrochemical models do not capture accurately. EMS optimisation decisions based on inaccurate SoH estimates will systematically over-stress degrading assets.
Sensor Drift: Voltage and current sensors drift over time calibration accuracy at installation degrades over years of operation. Uncorrected sensor drift introduces errors in SOC estimation that compound into dispatch errors. EMS platforms must implement sensor health monitoring and recalibration protocols to maintain state estimation accuracy across long operational lifetimes.
Thermal Interference: Temperature gradients within large battery packs mean that a single pack-level temperature reading is an inadequate basis for thermal management decisions. Localised hot spots that don’t affect average pack temperature can cause localised cell degradation or thermal runaway initiation. EMS thermal management must work from distributed temperature data, not averaged pack temperature.
Safety and Thermal Management
Thermal Runaway: At the EMS level, thermal runaway prevention means operating battery assets within dispatch profiles that avoid the operating conditions that initiate thermal events sustained high-rate discharge at elevated ambient temperature, rapid successive charge-discharge cycles without cooling recovery, and operation near full SoC in hot conditions. The EMS’s contribution to thermal safety is preventive keeping assets away from the conditions that the BMS’s protective disconnection is designed to handle.
Cell Imbalance: At fleet scale, EMS co-ordination must account for imbalance not just within individual packs (the BMS’s domain) but across multiple packs operating in parallel. Packs with different SoH and SoC states connected in parallel create circulating currents that stress all packs. The EMS must manage parallel operation to equalise pack utilisation and avoid forcing degraded packs to carry disproportionate share of system load.
Multi-Tier Co-ordination: In large BESS installations with rack-level BMS, string-level controllers, and system-level EMS, protective responses at one tier can create unexpected behaviour at another. A rack BMS disconnecting for overcurrent protection changes the impedance of the battery string potentially causing other racks to pick up the load beyond their rating. Multi-tier co-ordination protocols must be designed to handle these cascading interactions safely. These architectures become particularly demanding in high-power applications, where the BMS must coordinate monitoring, protection, communication, and power handling across increasingly large battery configurations
Scalability and Lifecycle Management
Heterogeneous Integration: BESS installations frequently add capacity over time new racks, new strings, potentially different battery chemistries or cell generations. The EMS must integrate heterogeneous assets with different voltage profiles, aging states, and performance characteristics into a unified dispatch optimization without sacrificing efficiency or safety.
Second-Life Batteries: Retired EV batteries with 70–80% remaining capacity are increasingly being repurposed for stationary storage. Second-life batteries have highly variable and uncertain remaining capacity, non-uniform aging history, and different safe operating envelopes than new cells. Managing second-life battery assets within an EMS requires adaptive state estimation and conservative dispatch strategies that account for this uncertainty.
Algorithm Adaptation: EMS optimisation algorithms calibrated for a new battery fleet become less accurate as that fleet ages. Machine learning-based EMS platforms that continuously update their models from observed battery behaviour maintain optimisation accuracy across the asset’s lifecycle. Rule-based EMS platforms require manual recalibration, an operational burden that scales poorly with fleet size.
What to Consider When Choosing an Energy Management System
1. Communication and Protocol Compatibility
The EMS must communicate natively with every device in the system battery BMS via CAN or Modbus, inverters via SunSpec Modbus or IEC 61850, meters via Modbus TCP, and cloud platforms via MQTT or REST. Verify native protocol support before committing to an EMS platform protocol gateway workarounds add latency, cost, and failure points that degrade system reliability.
2. Battery Chemistry and Voltage Matching
The EMS’s dispatch parameters SoC operating window, charge and discharge rate limits, thermal management setpoints must be configured for the specific battery chemistry and voltage range of the installation. An EMS with fixed parameters for NMC will not optimize correctly for an LFP system. Confirm configurability for your specific chemistry and pack architecture before deployment.
3. Dispatch Controls and Operational Modes
Evaluate the EMS’s available dispatch modes against your operational requirements. At minimum: time-of-use optimisation, peak shaving, renewable firming, and self-consumption maximisation. For commercial BESS: energy arbitrage, frequency regulation, and demand response. For EV fleet: departure-time-aware charge scheduling and V2G dispatch. An EMS that cannot support your target operational modes is not a foundation for the business case you’re building.
4. Scalability for Future Expansion
Battery storage capacity rarely stays static. The EMS must scale to accommodate additional racks, strings, and sites without architectural redesign. Evaluate the platform’s maximum asset count, multi-site management capability, and the additional licensing or hardware cost of expansion. An EMS that becomes a bottleneck when you add capacity is a constraint on your business growth.
Why Maxwell’s Battery Management Solutions Make Energy Management Smarter
Edge Intelligence and Predictive Safety
Maxwell’s BMS platforms embed intelligence at the cell level running SOC, SOH, and thermal prediction algorithms locally rather than depending on cloud connectivity for real-time safety decisions. This edge intelligence means protective responses happen in milliseconds regardless of network availability, while aggregated data is available to the EMS layer for system-level optimisation. Predictive fault detection identifies developing cell issues before they trigger protective disconnection giving the EMS advance warning to adapt dispatch away from at-risk assets.
Chemistry and Hardware Agnosticism
Maxwell’s BMS solutions support LFP, NMC, NCA, and NiMH chemistries across a voltage range of 24V to 1500V with 300+ configurable parameters that allow the BMS to be precisely calibrated for any cell chemistry and pack architecture. For EMS integrators managing heterogeneous battery fleets, Maxwell’s flexibility eliminates the need for chemistry-specific BMS hardware across the portfolio.
Advanced Paralleling and Hot-Swapping
Maxwell BMS architecture supports dynamic parallel battery connection with active current sharing management, and hot-swapping capability for applications requiring battery maintenance without system shutdown. These features are critical for large BESS installations where the EMS must manage assets going in and out of service without disrupting system-level dispatch optimisation.
Seamless Ecosystem Integration
Maxwell BMS communicates over CAN 2.0, CANopen, RS485/Modbus, and UART the full range of interfaces that EMS platforms, inverters, and SCADA systems use. No proprietary communication lock-in means Maxwell BMS integrates cleanly with any EMS platform, any inverter brand, and any monitoring architecture the project requires.
V2G and Renewable Compatibility
Maxwell’s BMS and power electronics architecture is designed for bidirectional energy flow supporting vehicle-to-grid, vehicle-to-home, and vehicle-to-load applications as V2G deployment scales in India and internationally. For renewable-plus-storage applications, Maxwell’s multi-chemistry BMS capability and communication flexibility make it a natural fit for the complex system architectures that solar, wind, and grid storage projects require.
Conclusion
An Energy Management System is not a luxury for large-scale projects. It is the intelligence layer that transforms battery storage from reactive hardware into a proactive, optimised energy asset one that reduces costs, generates revenue, extends battery life, and supports grid stability simultaneously.
EMS and BMS are not competing systems. They are complementary layers of a well-designed battery architecture, the BMS managing physical safety and cell-level state at microsecond timescales, the EMS managing economic dispatch and system co-ordination at minute-to-day timescales. When both layers are engineered well and integrated correctly, the result is a battery system that performs at the boundary of what the chemistry allows safely, economically, and for the full design life of the asset.
Maxwell Energy is a leading BMS manufacturer in India and their BMS solutions are built to be the precision sensing and protection foundation that every EMS depends on delivering the accurate, real-time telemetry and reliable command execution that system-level optimisation requires.
FAQ
Q. What is the energy management system for battery storage?
An EMS for battery storage is a software and hardware platform that manages how a battery system charges, discharges, and interacts with generation assets, loads, and the grid optimising dispatch for economic performance, battery health, and grid compliance. It operates above the BMS layer, using BMS telemetry as inputs and issuing dispatch commands that the BMS executes within its safety envelope.
Q. What are the three types of BMS?
The three primary BMS architectures are centralized (single board manages all cells simple, cost-effective for small packs), modular/decentralized (standardised modules handle fixed cell groups under a master controller scales well for medium-to-large packs), and distributed (satellite boards handle cell-level measurement with a master for system logic optimal for large-format packs with hundreds or thousands of cells).
Q. What is an energy management system?
An energy management system is a framework for energy consumers, a set of processes, equipment, and technology that acquires data from different energy-consuming equipment, analyses it, and uses it for proactive and systematic monitoring, control, and optimisation of energy consumption, generation, and storage.
Q. What is the difference between a battery management system and an energy management system?
The BMS operates at the cell and pack level managing safety, cell balancing, state estimation, and protection in real time at millisecond timescales. The EMS operates at the system level managing how battery assets, generation, and loads interact for economic and operational optimisation at minute day-to-day timescales. The BMS answers “is this battery safe and what is its state?” The EMS answers “how should energy flow across this system right now?”
Q. What exactly is an EMS system?
An EMS is a computer system for the automated control and monitoring of energy systems combining hardware controllers, communication networks, data acquisition infrastructure, and optimization software into a unified platform that manages energy assets toward defined economic and operational objectives.
Q. What is energy management in simple words?
Energy management is the process of monitoring how energy is used, controlling when and how it flows, and optimising decisions about generation, storage, and consumption to reduce cost, improve reliability, and meet sustainability goals. In battery applications, it means making the battery charge and discharge at the right times, in the right amounts, for the best outcome automatically.
